Series vs Parallel Solar Panel Wiring: Complete Guide

Wiring your panels in series increases voltage while keeping current constant. Wiring in parallel increases current while keeping voltage constant. The choice determines which charge controller you can use, how thick your wires must be, and how shade affects your system. Getting this wrong either limits your system's output or blows your controller.

Quick Answer

Wire in series for MPPT controllers, longer wire runs, and 24V or 48V battery systems. Wire in parallel for PWM controllers, 12V systems with 12V panels, and shade-prone locations. For 4 or more panels, series-parallel hybrid gets you the best of both. Never exceed your controller's maximum input voltage panels in series can output dangerously high voltages in cold weather.

What Series and Parallel Wiring Mean

These terms describe how electrical components connect to each other. The difference is which terminals you connect together:

Series Wiring

Connect the positive terminal of one panel to the negative terminal of the next panel in a chain. The result: voltages add together, current stays the same as one panel.

Panel 1 (+) → Panel 2 (-)
Panel 2 (+) → Panel 3 (-)
Panel 3 (+) → Controller (+)
Panel 1 (-) → Controller (-)

Parallel Wiring

Connect all positive terminals together and all negative terminals together. The result: currents add together, voltage stays the same as one panel.

All (+) → Junction Box (+) → Controller (+)
All (-) → Junction Box (-) → Controller (-)
Each panel runs independently at same voltage

The Voltage and Current Math

Understanding this math prevents costly mistakes. Use a 100W panel with these typical specs as the baseline:

Reference Panel Specs

Rated power (Pmax): 100W
Open circuit voltage (Voc): 22.5V
Max power voltage (Vmp): 18.9V
Short circuit current (Isc): 5.78A
Max power current (Imp): 5.29A

Configuration	Total Voc	Total Vmp	Total Isc	Total Power
2 panels Series	45V	37.8V	5.78A	200W
2 panels Parallel	22.5V	18.9V	11.56A	200W
4 panels Series	90V	75.6V	5.78A	400W
4 panels Parallel	22.5V	18.9V	23.12A	400W
4 panels 2S2P Hybrid	45V	37.8V	11.56A	400W

All configurations produce the same total wattage. The difference is voltage level and current level, which affects controller compatibility and wire sizing.

When to Wire in Series

Higher Voltage for MPPT Controllers

MPPT controllers work most efficiently when panel voltage is significantly higher than battery voltage. A series array at 45V feeding a 12V battery gives the MPPT controller more voltage headroom to optimize power extraction. The controller converts the excess voltage into additional charging current. This is the primary reason most RV and cabin builds wire panels in series with an MPPT controller.

Longer Wire Runs

Voltage drop in a wire is proportional to current. Higher voltage, lower current: same power, less drop. A series-wired array at 45V carrying 5.78A requires much thinner wire than a parallel array at 22.5V carrying 11.56A for the same 200W of power. On a 30-foot run from roof panels to a controller, series wiring can reduce wire sizing by two AWG gauges, saving significant cost and installation complexity.

Same 200W array over 30-foot run:
Series (45V, 5.78A): 10 AWG wire, 2.1% voltage drop
Parallel (22.5V, 11.56A): 6 AWG wire, 2.1% voltage drop
Series saves ~$40 in wire cost for a 30-foot run

24V and 48V Battery Systems

For a 24V battery system, you need panel voltage well above 29V (absorption voltage) to charge effectively. A single 12V panel at 22.5V Voc cannot charge a 24V battery at all. Wiring two 12V panels in series gives 45V Voc, comfortably above the 24V battery's needs. For 48V systems, you typically need four panels in series or panels with higher voltage ratings.

When to Wire in Parallel

PWM Charge Controllers

PWM controllers connect panels directly to the battery and clamp panel voltage to battery voltage. For a PWM controller to work, the panel array voltage must not significantly exceed the battery voltage. 12V nominal panels (18V Vmp) with a 12V battery is the standard PWM configuration. Wiring 12V panels in series for a PWM controller makes no sense: the controller cannot use the higher voltage.

Shade Tolerance

Shading is where parallel wiring shines. In a series string, shade on one panel reduces current through the entire string to the level of the shaded panel. One panel at 30% output drags the entire series string to 30%. In a parallel configuration, each panel operates independently. A shaded panel produces reduced output, but the unshaded panels run at full production. If your panels receive partial shade at different times (one edge of the roof shades one panel in the morning, another at dusk), parallel minimizes the impact.

Matching Battery System Voltage

If your panels are already at the right voltage for your battery system, there is no reason to wire in series. Three 12V panels in parallel give you 22.5V Voc, fine for a 12V battery with an MPPT controller that can step it down efficiently. Four 24V panels in parallel give you 44V Voc, perfect for a 24V MPPT system.

Series-Parallel Hybrid for Larger Arrays

For arrays with four or more panels, a series-parallel hybrid configuration often delivers the best of both worlds. You keep voltage at a MPPT-friendly level while spreading current across two parallel strings.

The standard approach for four 100W panels is 2S2P: two panels in series per string, two strings in parallel. This is called a 2-series, 2-parallel (2S2P) configuration.

String 1: Panel 1 (+) → Panel 2 (-), then (+) of Panel 2 to controller (+)
String 2: Panel 3 (+) → Panel 4 (-), then (+) of Panel 4 to controller (+)
String 1 (-) of Panel 1 and String 2 (-) of Panel 3 both → controller (-)

Result: 45V Voc, 11.56A Isc, 400W total

The 2S2P config gives you 45V panel voltage (good for MPPT efficiency) while reducing current per wire to 5.78A per string (allowing thinner wires). The two strings share a combiner box that feeds a single MPPT input. If one string is partially shaded, the other string continues at full output.

4S1P vs 2S2P vs 1S4P for 4x 100W Panels

Config	Voc	Isc	Controller Need	Shade Impact
4S1P	90V	5.78A	MPPT (150V+)	1 shaded = string drops 70%
2S2P	45V	11.56A	MPPT (100V+)	1 shaded = 25% loss max
1S4P	22.5V	23.12A	PWM or MPPT (50V+)	1 shaded = 25% loss, isolated

Charge Controller Voltage Limits: A Critical Warning

Exceeding Maximum Input Voltage Destroys Controllers

Every charge controller has a maximum input voltage rating typically 100V, 150V, or 250V. This is the maximum Voc (open circuit voltage) the controller can handle without damage. If your panel array Voc exceeds this limit, the controller will fail immediately and permanently, often with no warranty coverage.

The dangerous scenario: panels are tested at 25°C (77°F). In cold weather, panel Voc rises. A panel rated at 44V Voc at 25°C may output 49V at 14°F (-10°C). If you have four such panels in series, cold-weather Voc is 196V, which destroys a 150V-rated controller.

Calculate maximum series Voc using this formula:

Max Voc at minimum temperature =
Panel Voc x [1 + (Temperature coefficient Voc) x (Min temp - 25°C)]

Example: 44V Voc, coeff = -0.35%/°C, min temp = -10°C
44V x [1 + (-0.0035) x (-10 - 25)] = 44V x 1.1225 = 49.4V per panel
4 panels in series: 49.4V x 4 = 197.6V

Controller Max Voc	Safe Series Strings (100W panels, cold climate)
50V (most PWM)	1 panel max in series (no series wiring in cold climates)
100V (budget MPPT)	2 panels safely in series, 3 panels in warm climates only
150V (mid-range MPPT)	3 panels safely in series in any climate
250V (quality MPPT)	5 to 6 panels safely in series in any climate

Common Wiring Mistakes

Wiring panels in series beyond controller Voc rating

The most costly mistake in solar. Three 22.5V panels in series give 67.5V Voc. On a cold morning at 20°F, this becomes 75V fine for a 100V controller. Four panels at 90V Voc becomes 101V cold destroys a 100V controller. Always calculate cold-weather Voc before finalizing series string count.

Mixing different panel models in a series string

Series strings require matched current ratings. If one panel has Isc of 5.5A and another has 6.1A, the 5.5A panel limits the entire string to 5.5A. The 6.1A panel cannot deliver its extra current. You lose performance continuously. Only mix panels in parallel, and only when their voltage ratings match.

Using parallel wiring with undersized wire

Parallel wiring carries higher current than series for the same panel count. Four 100W panels in parallel carry 23.12A of short-circuit current requiring 10 AWG minimum wire per string, with a combiner capable of handling 25A. Undersized wire in a parallel array is a fire hazard. Size wire for 1.56x Isc per NEC 690.

Forgetting blocking diodes in parallel arrays

In parallel configurations, a shaded panel can act as a load, drawing current from the other panels in reverse. This causes heating and can damage the panel over time. Each parallel string should have either a blocking diode in series (typically built into the panel junction box) or a fuse rated at 1.56 times the panel's Isc.

Wiring a series string to a PWM controller

A PWM controller clamps panel voltage to battery voltage. If you wire two 18V panels in series (36V), then connect to a PWM controller with a 12V battery, the controller forces the array to 13V. You lose the extra 23V of potential. The controller does not convert it; it simply discards it. Always match series string voltage to the controller's design.

Practical Example: 4x 100W Panels, Two Configurations

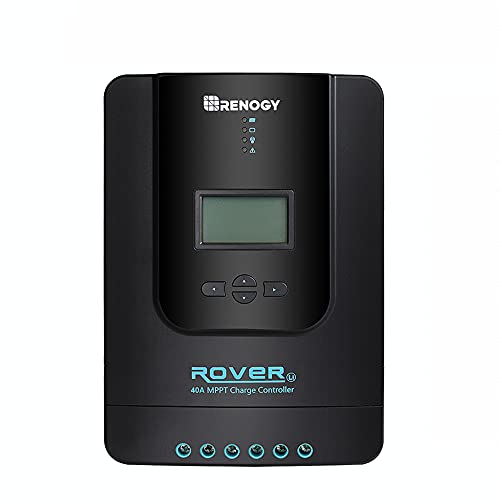

System: 4x Renogy 100W panels (Voc 22.5V, Vmp 18.9V, Isc 5.78A, Imp 5.29A), 12V LiFePO4 battery, Renogy 40A MPPT controller.

Configuration A: 2S2P

Two strings of 2 panels each, wired in parallel

Array Voc:45V

Array Vmp:37.8V

Array Isc:11.56A

Total power:400W

Wire required:10 AWG per string

Controller needed:40A MPPT, 100V+

Best all-around. MPPT-friendly voltage, manageable current, partial shade tolerance per string.

Configuration B: 1S4P

All four panels in parallel

Array Voc:22.5V

Array Vmp:18.9V

Array Isc:23.12A

Total power:400W

Wire required:6 AWG main run

Controller needed:40A MPPT or PWM

More shade tolerant per panel. Requires heavier wire and a combiner. Less MPPT voltage headroom.

Recommendation for this setup: 2S2P. The 45V array voltage gives the Renogy 40A MPPT controller ideal headroom. Wire runs use thinner 10 AWG. If one of the two strings gets shaded in the morning, the other string operates at full production.

Frequently Asked Questions

Should I wire my solar panels in series or parallel?+

Wire in series when using an MPPT controller, when wire runs exceed 15 feet, or when you need to raise array voltage above battery voltage for a 24V or 48V system. Wire in parallel when using a PWM controller, when panels already match battery voltage, or when partial shading of some panels is expected. Series-parallel hybrid works well for 4 or more panels where you want some of each benefit.

What happens to voltage and current when panels are wired in series?+

In series wiring, voltages add together while current stays constant. Two 100W panels each with 22.5V Voc and 5.78A Isc wired in series produce: 45V Voc, 5.78A Isc, 200W total. The same math applies for any number of panels: voltage multiplies by the number of panels in series, current stays equal to one panel's current.

What happens to voltage and current when panels are wired in parallel?+

In parallel wiring, currents add together while voltage stays constant. Two 100W panels each with 22.5V Voc and 5.78A Isc wired in parallel produce: 22.5V Voc, 11.56A Isc, 200W total. The voltage stays at one panel's voltage, while current multiplies by the number of panels wired in parallel.

How do I protect a parallel-wired array from reverse current?+

Each parallel string should have a blocking diode or a fuse rated at 1.56 times the panel's short-circuit current. Without protection, a shaded or failed panel in a parallel array can become a load for the other panels, drawing reverse current and potentially damaging it. Most panel junction boxes include a bypass diode, but blocking diodes between parallel strings are good practice in permanent installs.

Can I mix different brands or wattage panels in the same array?+

Mixing panels in a series string is problematic: the lowest-performing panel limits the entire string's output. In a series string, all panels must have the same current rating (Isc). In a parallel array, all panels must have the same voltage (Voc and Vmp). Mixing panels with different specs is possible but results in the weakest panel dragging down the output of the stronger ones. Matching panels is always the preferred approach.
